Yamaha R1 2007-2008 Stainless Fairing Bolt Kit + Dzus Fastener Quick Release

£47.99
 per
Tax included.
Shipping calculated at checkout.
In stock!
Kit Type

Product description

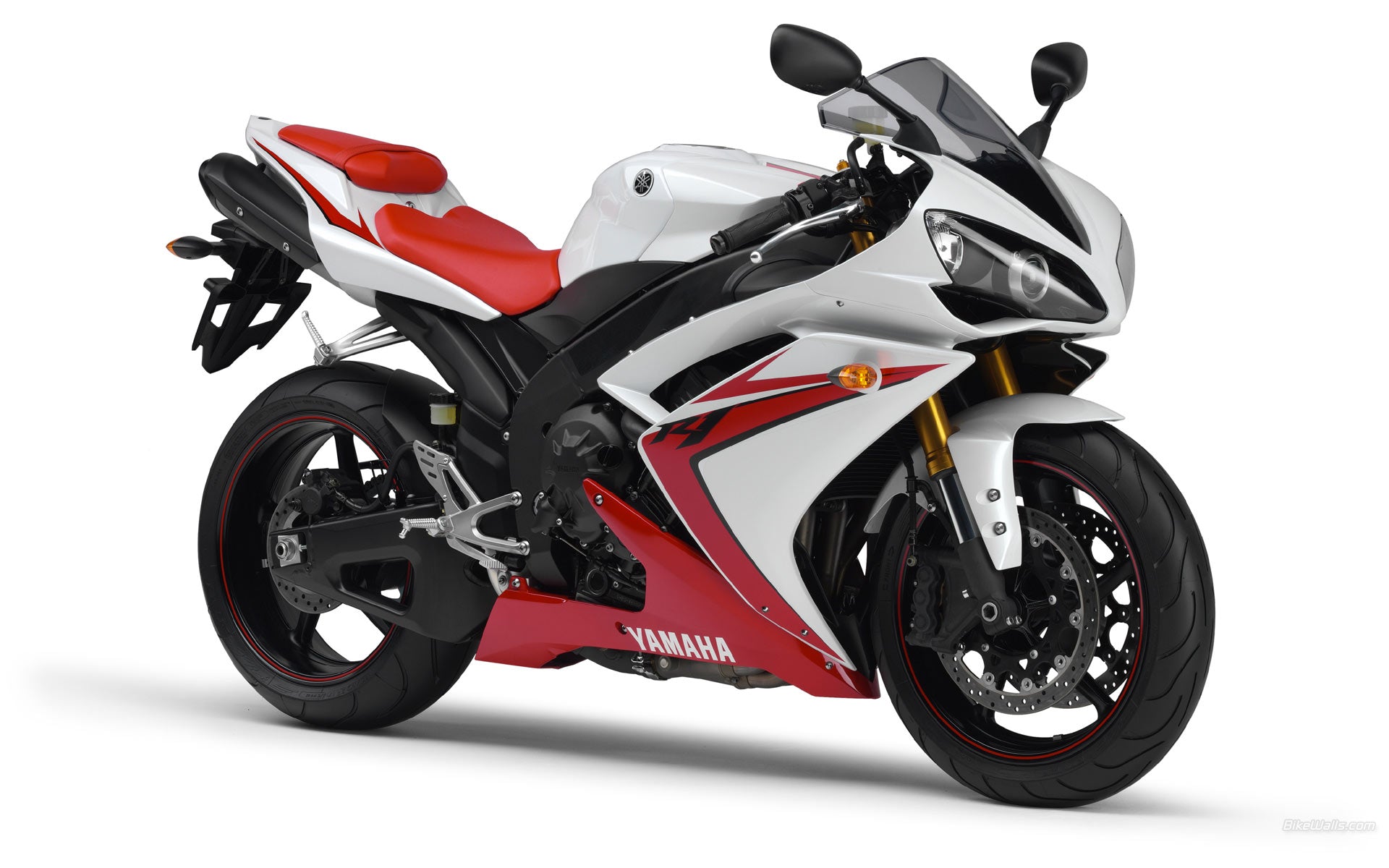

This kit will fit all Yamaha R1 models between 2007 to 2008.

A fitting guide will be sent with the kit.

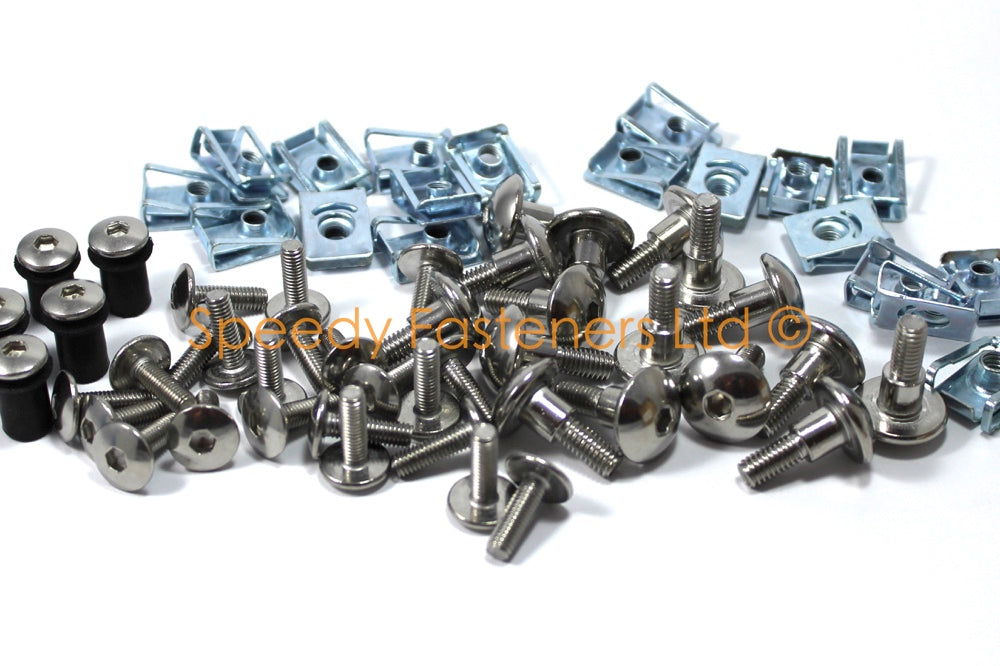

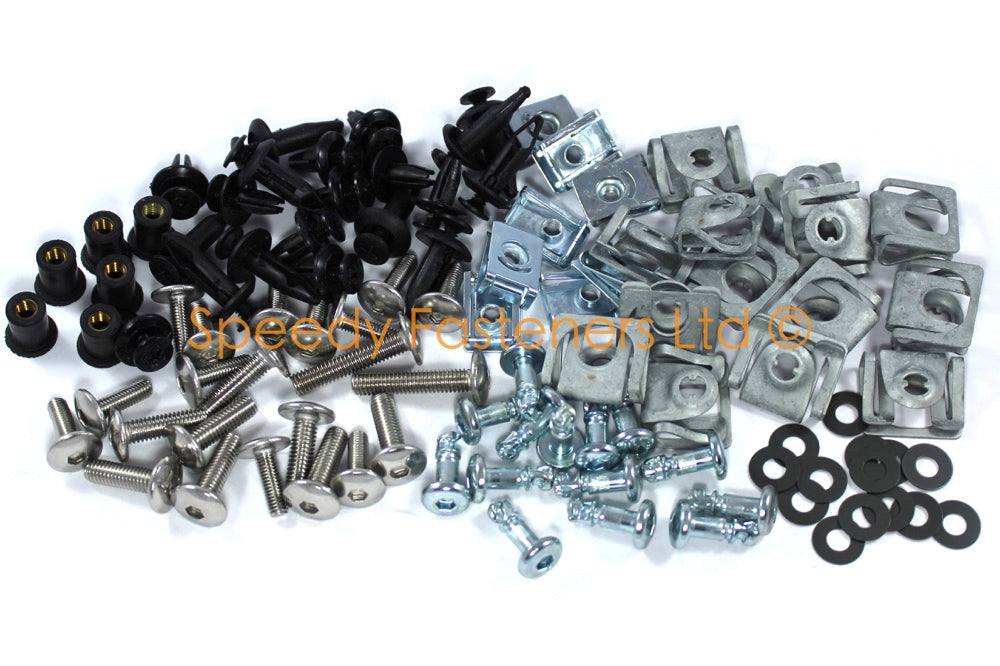

Please note the pictures above are generic. They best represent the kit but the quantities will be different. No actual fairing panels are included, only fixings!

This kit is designed to replace all the visible external fairing bolts with nice shiny stainless steel bolts and swap the Dzus studs for fresh studs. The bolts are as near to the original Yamaha bolts as we can get. They all have a button head with a 4mm Allen Key hex in the top.

This kit will replace all the quarter turn fasteners with GENUINE Dzus Fasteners plus all the threaded bolts that secure the upper and lower main fairings and rear fairings. This kit also replaces all the necessary clips well nuts and washers including the screen bolts and well nuts.

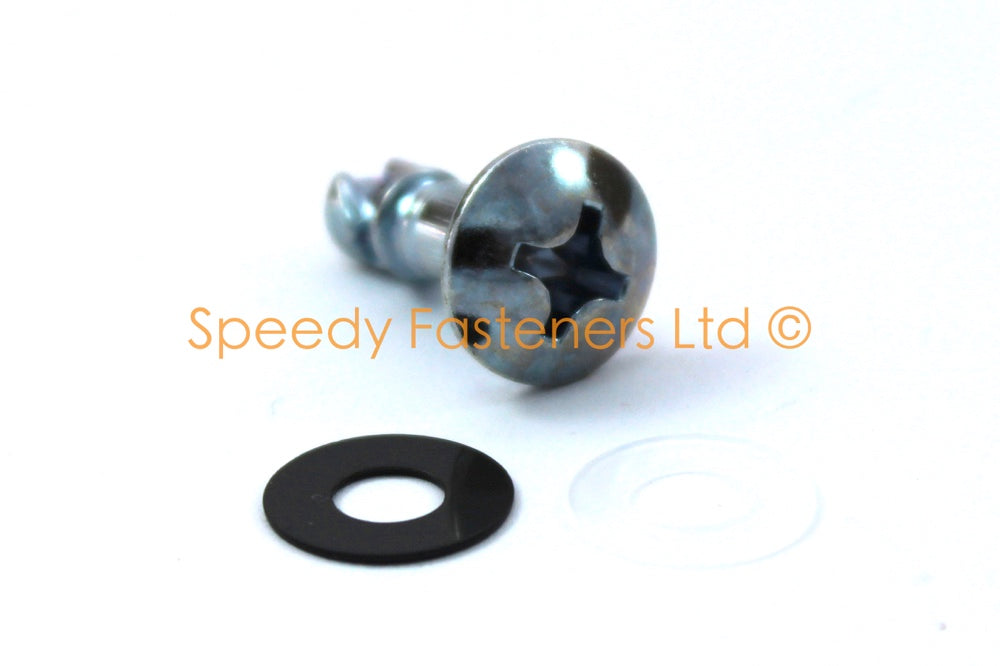

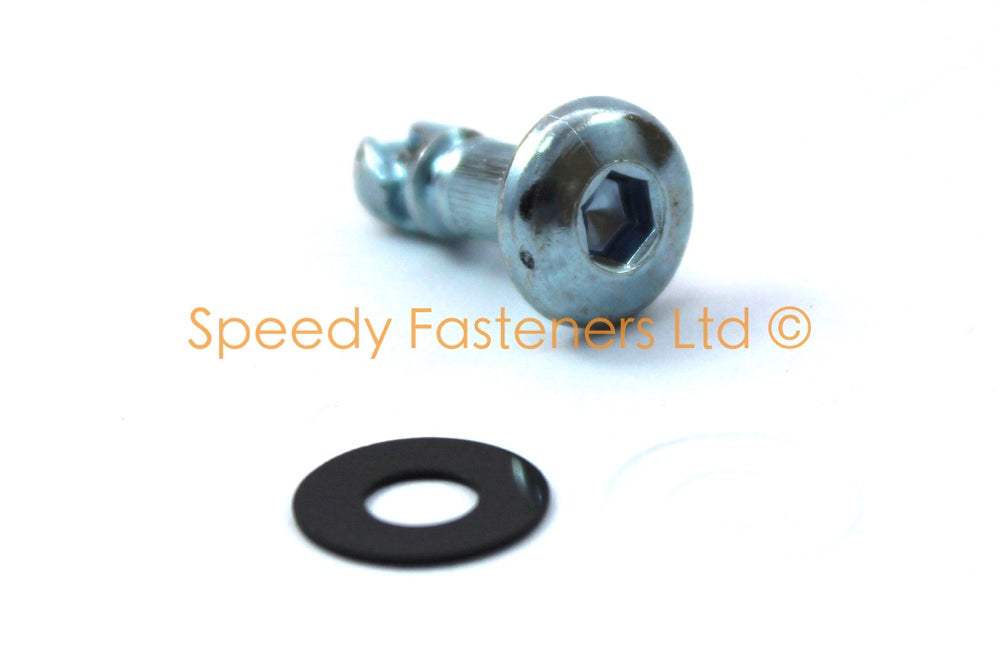

The Dzus supplied with this kit have either an Allen Key (Hexagon) Head Dzus bolts or Posi/ Crosshead Dzus studs (please see pictures)

This kit features high quality Stainless Steel pan head bolts with a head diameter of 13.5mm (m5), 14mm (m6) and large (18mm diameter) headed shoulder bolts. These bolts are Stainless Steel which are better than standard zinc plated bolts as they won't rust and have a shine that lasts for years

These are not Yamaha bolts, they are bolts we have had made from Stainless Steel to replace/upgrade the standard Yamaha bolts. They have a similar head shape, thread diameter and thread length dimensions to the standard bolts so will look like original bolts but remain rust-free for a lot longer. Different sized bolts are packaged separately in groups to make it easy for you to replace each standard bolt with the corresponding Stainless Steel bolt from Speedy Fasteners.

This kit does NOT include the rubber fairing and front mudguard grommets. Not everybody wants to change these, and to keep the costs down they are not in this kit. To add these to your kit please buy them from this listing "2x Rubber Fairing Grommet Yamaha R1 R6 Grommets 90480-13014-00 & 90480-13398-00”. We’ll add them to your order and the postage won’t increase.

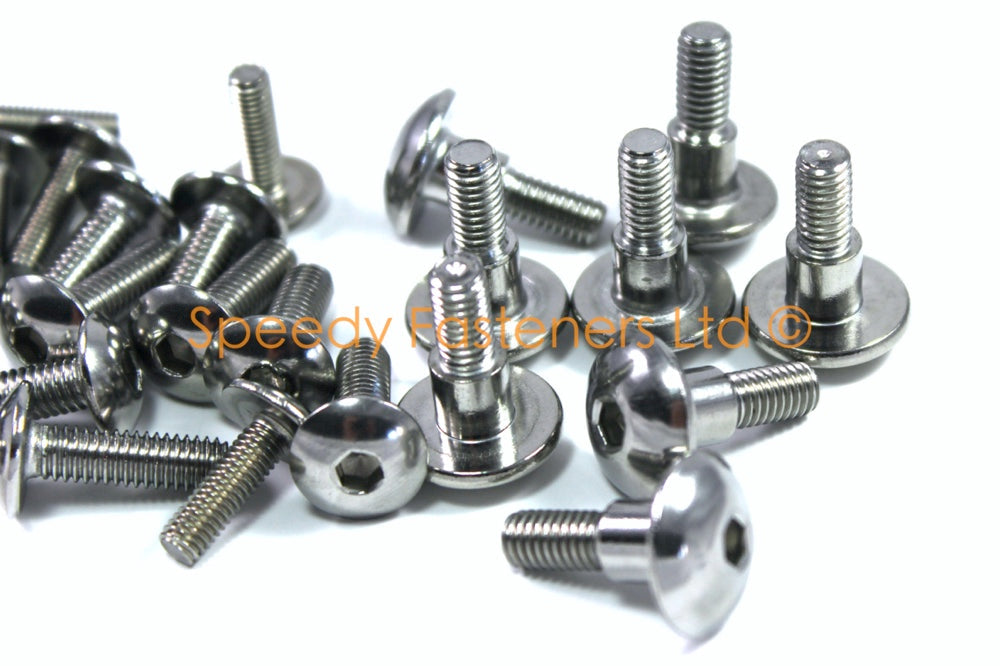

This kit includes all the spacers/shoulders required to correctly space your bolt head from the fairing to prevent pinching or over-tightening of the fairing. Our shoulder bolts replace the top hat style OEM bolts.


This kit will replace all the external fairing bolts & fixings securing the:

Upper Fairing / Cowl
Belly Pan / Lower Fairing
Front Fender
Rear Fairing / Side Covers
Infill Panels

Included in this 107 piece kit are:

15 Stainless Steel Bolts
30 Nylon Washers
3 Spring Clips
14 Plastic Screw Rivets
15 Dzus Studs
15 Dzus Clips
15 Dzus Retaining Washers


This kit is made of high quality products at low prices. If bought from Yamaha, these parts will cost you $1.84 (1x bolt), each Dzus stud will cost $8.99, each Dzus clip costs $4.99 and each Dzus washer $1.99!

The Dzus replaces Yamaha part numbers 5PW-28386-00-00, 5PW-2177L-00-00, 2TK-21757-00-00.

100% money back guarantee if you are not happy with the kit.

Thanks for looking, any feedback or suggestions would be welcomed.
