Suzuki SV650 2003-2010 Stainless Steel Fairing & Screen Bolt Kit SV 650

£18.99
 per
Tax included.
Shipping calculated at checkout.
In stock!

Product description

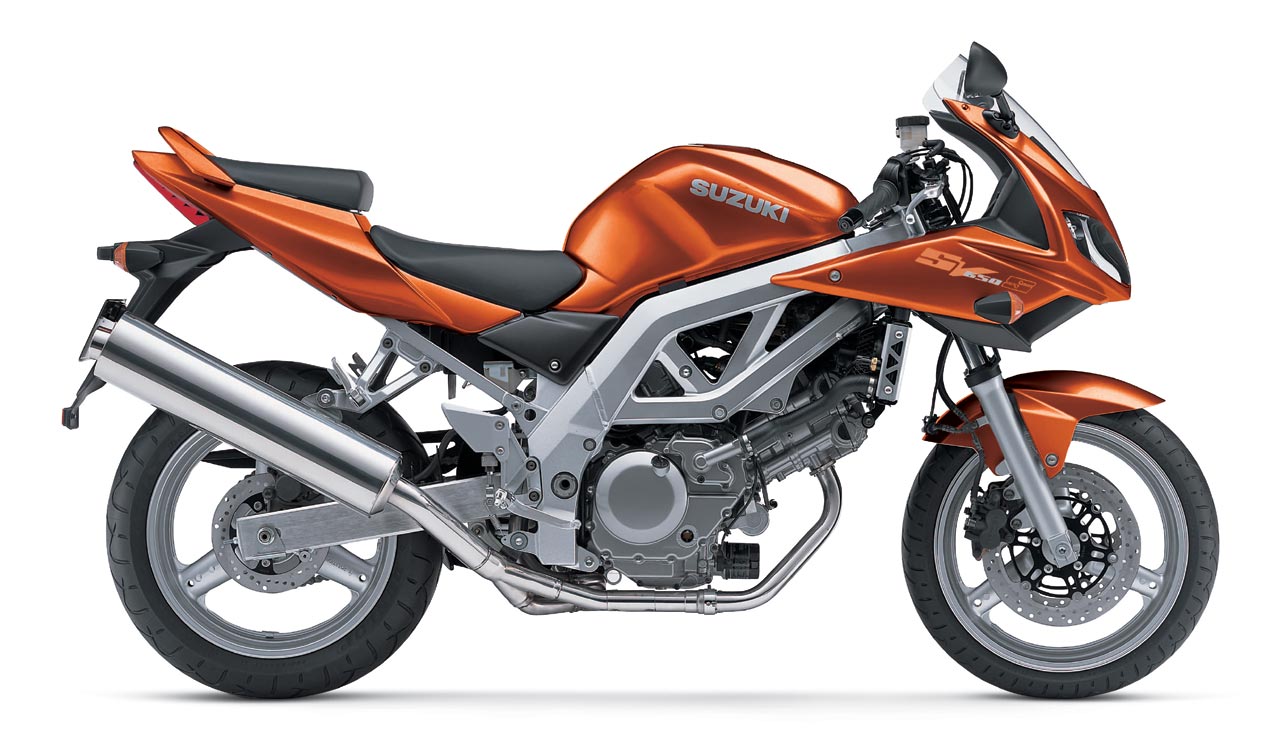

This kit will fit the Suzuki SV650 2003-2010 models.

A FITTING GUIDE WILL BE POSTED OUT WITH THE KIT

Please note the pictures above are generic. They best represent the kit but the quantities will be different. No actual fairing panels are included, only fixings!

This kit is designed to replace all the visible external fairing & screen bolts with nice shiny stainless steel bolts.

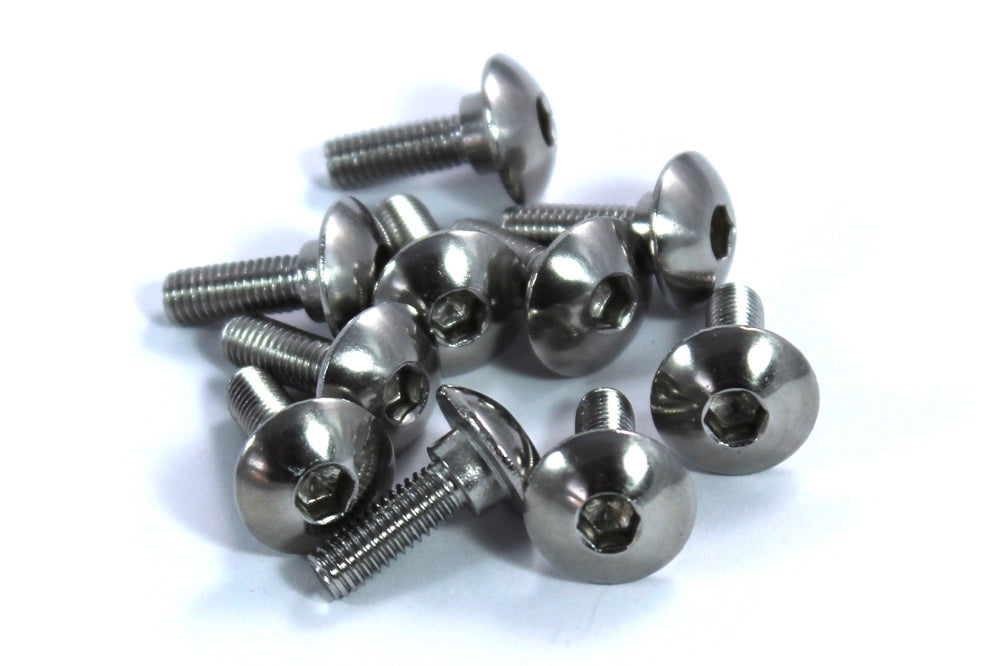

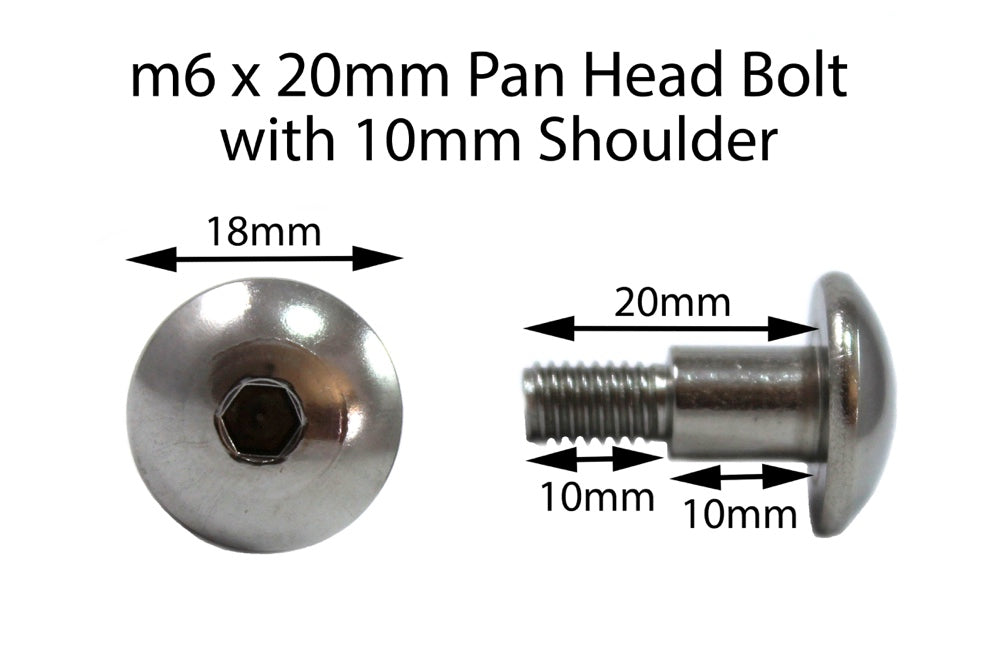

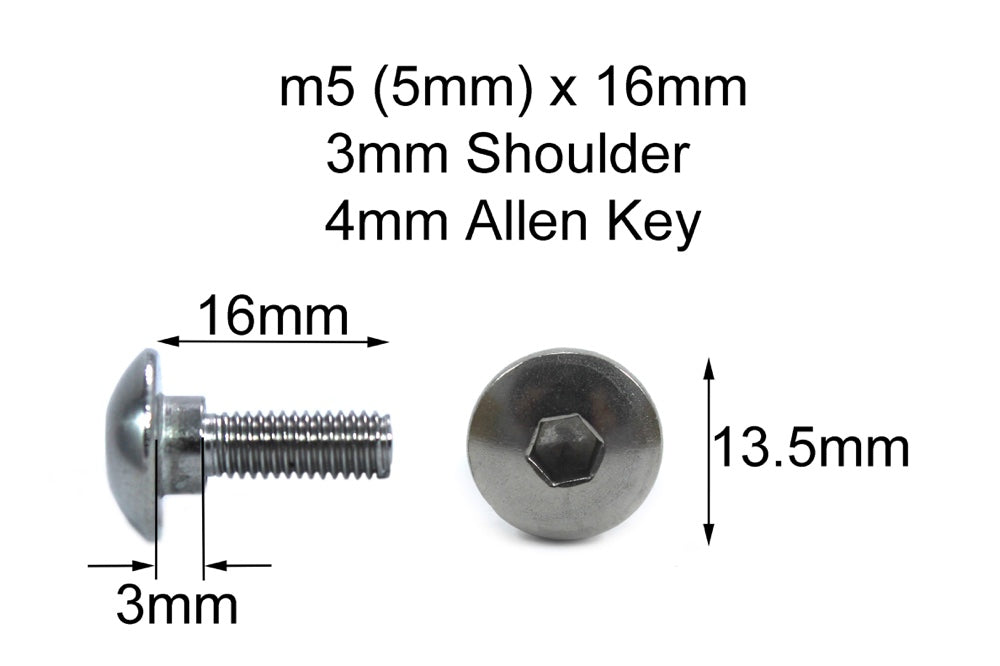

This kit features high quality Stainless Steel Pan Head Bolts with a head diameter of 13.5mm (m5), 14mm (m6) and large (18mm diameter) headed shoulder bolts. These bolts are Stainless Steel which are better than standard OEM zinc plated bolts as they won't rust and have a shine that lasts for years.
This kit does NOT include the rubber fairing grommets. To add these to your kit please buy them from this listing "2x Black Rubber Fairing Grommets Suzuki 09320-09016 Cushion GSX-R GSX GSXR SV650".

These are not Suzuki bolts, they are bolts we have had made from Stainless Steel to replace/upgrade the standard Suzuki bolts. They have a similar head shape, thread diameter and thread length dimensions to the standard bolts so will look like original bolts but remain rust-free for a lot longer. Different sized bolts are packaged separately in groups to make it easy for you to replace each standard bolt with the corresponding Stainless Steel bolt from Speedy Fasteners.

This kit includes all the spacers/standoffs required to correctly space your bolt head from the fairing to prevent pinching or over-tightening of the fairing. These spacers are also made from stainless steel to prolong the life of this bolt kit.

This kit will replace all the external fairing bolts securing the:
Upper Fairing / Cowl
Screen
Front Mudguard / Fender
Rear Fairing

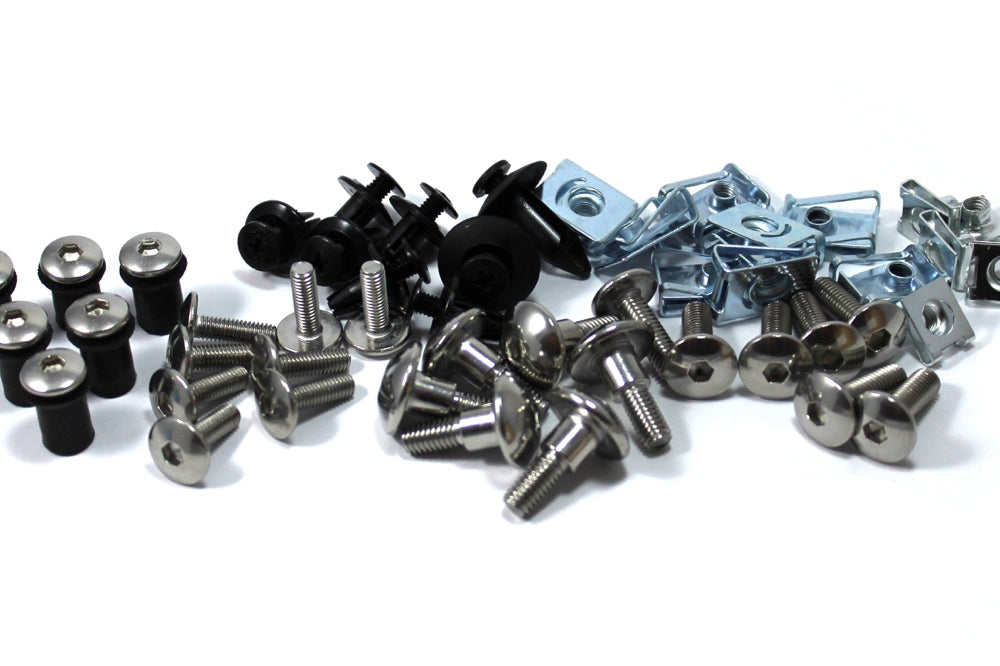

Included in this 50 piece kit are:
18 Stainless Steel Bolts
18 Nylon Washers
Spacers
6 Well Nuts
4 Plastic Screw Rivets
4 Metal Spring Clips

This kit is made of high quality products at low prices. If bought from Suzuki, these parts will cost you between $3.24 (1x bolt) and $5.75 (1x well nut).

These are not original Suzuki bolts, but are equivalents to these part numbers:

09139-05025, 09139-05042, 09139-05054, 94484-24F00, 09139-06121, 09139-06126

Please see our Suzuki Section for more great products.


100% money back guarantee if you are not happy with the kit.
