Honda XR250 XR350 XR450 XR650 Air Cleaner Side Plastics Cover Dzus Fasteners Bolts

£12.99
 per
Tax included.
Shipping calculated at checkout.
In stock!
Kit Type

Product description

This part is the same as Honda 17225-KN5-670

This part is used on the Honda XR250 XR350 XR450 XR650 to hold the side covers and air cleaner cover (on later models).

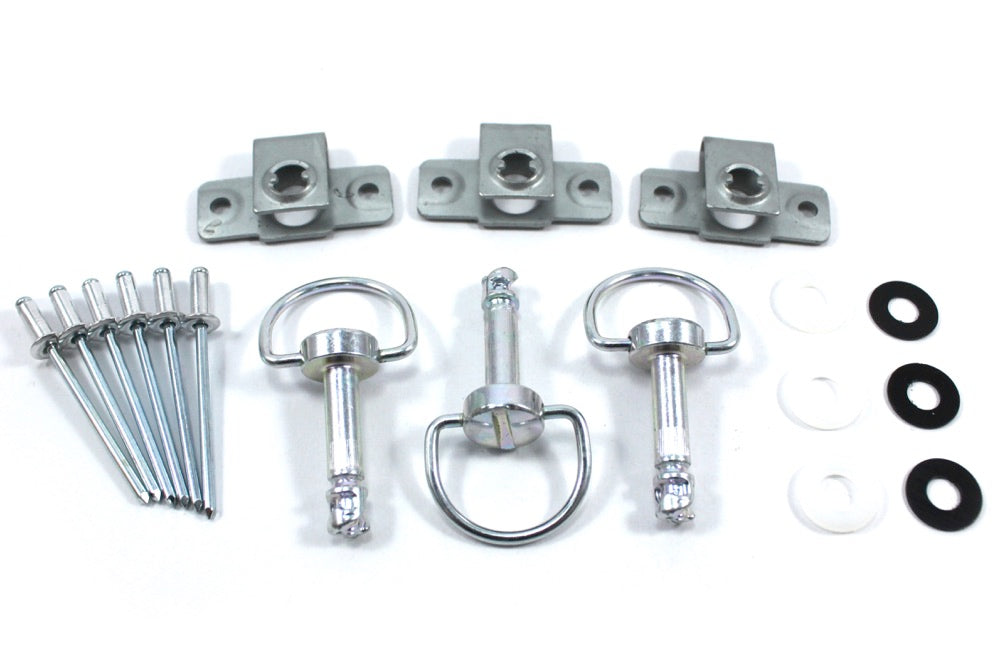

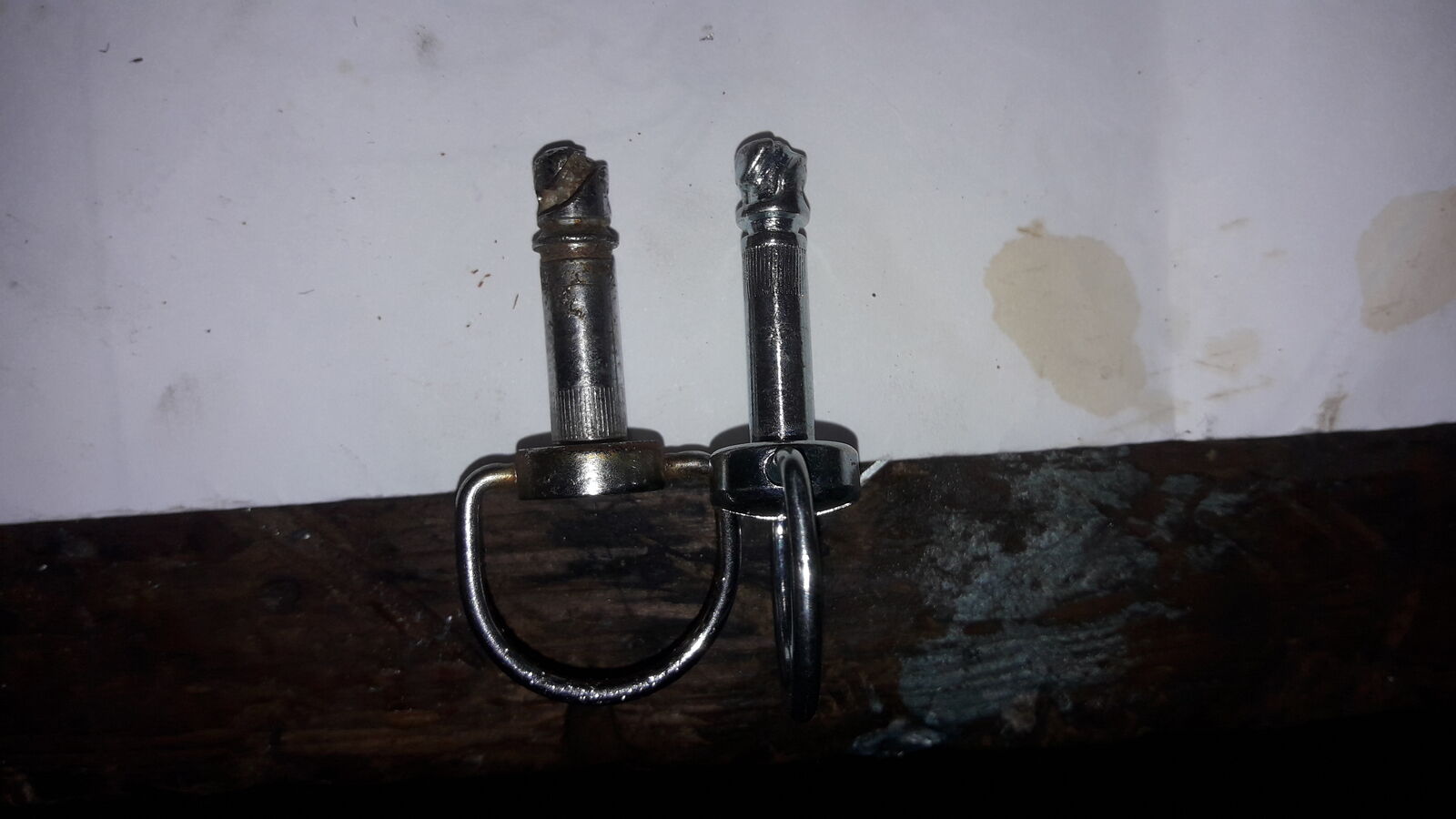

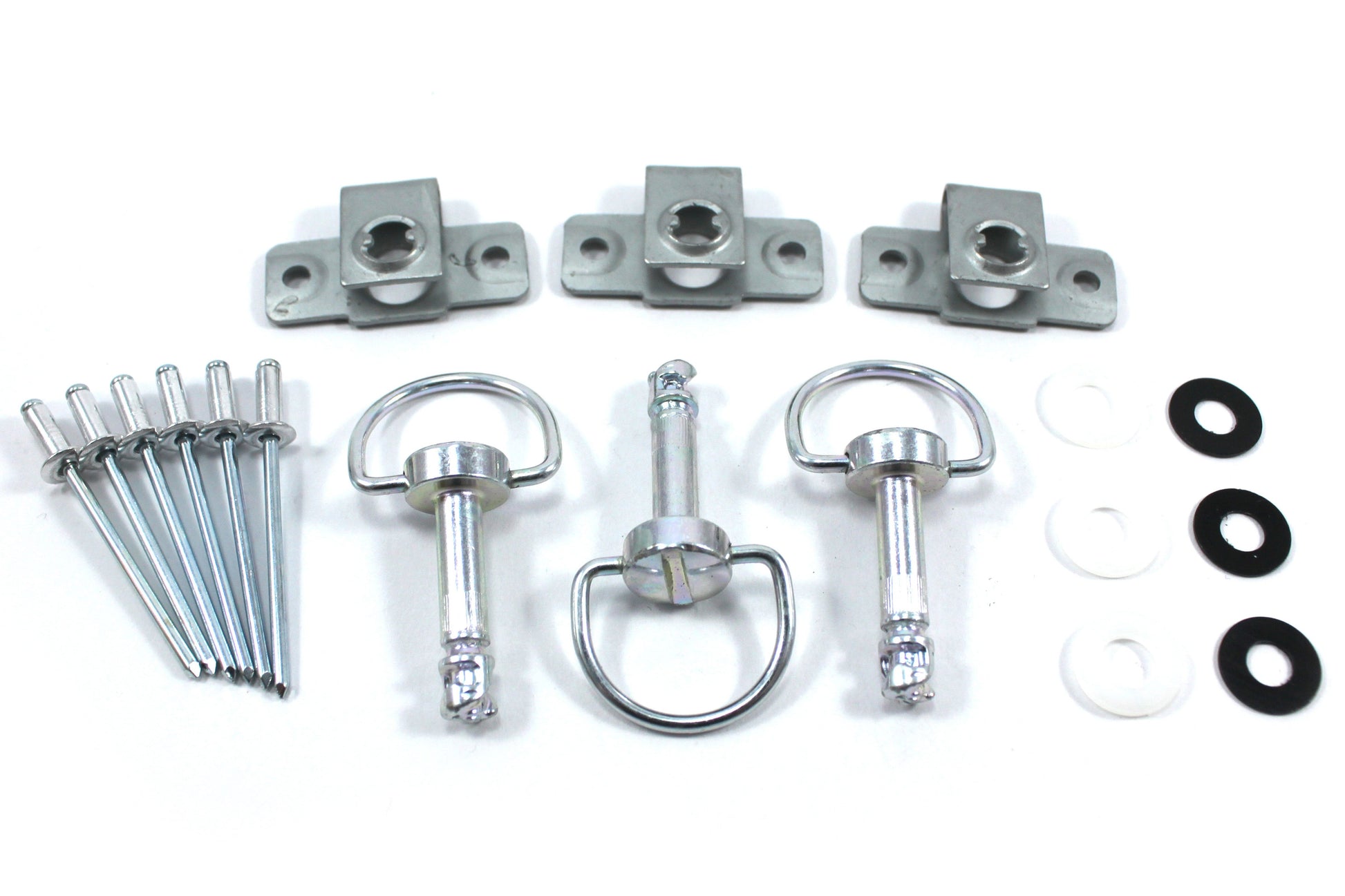

Please note I have heard of an issue with the Honda XR400 and XR600 1989 model where the studs and d-ring are 90 degrees out. Please see last picture and compare your stud before buying. Our stud is on the right. For this reason we offer the Crosshead Dzus Kit.

These are 100% genuine Dzus products, made to the highest standards required by aviation, GP & F1. If you see any cheaper kits they are most likely replicas made cheaply in China, don't take the risk!

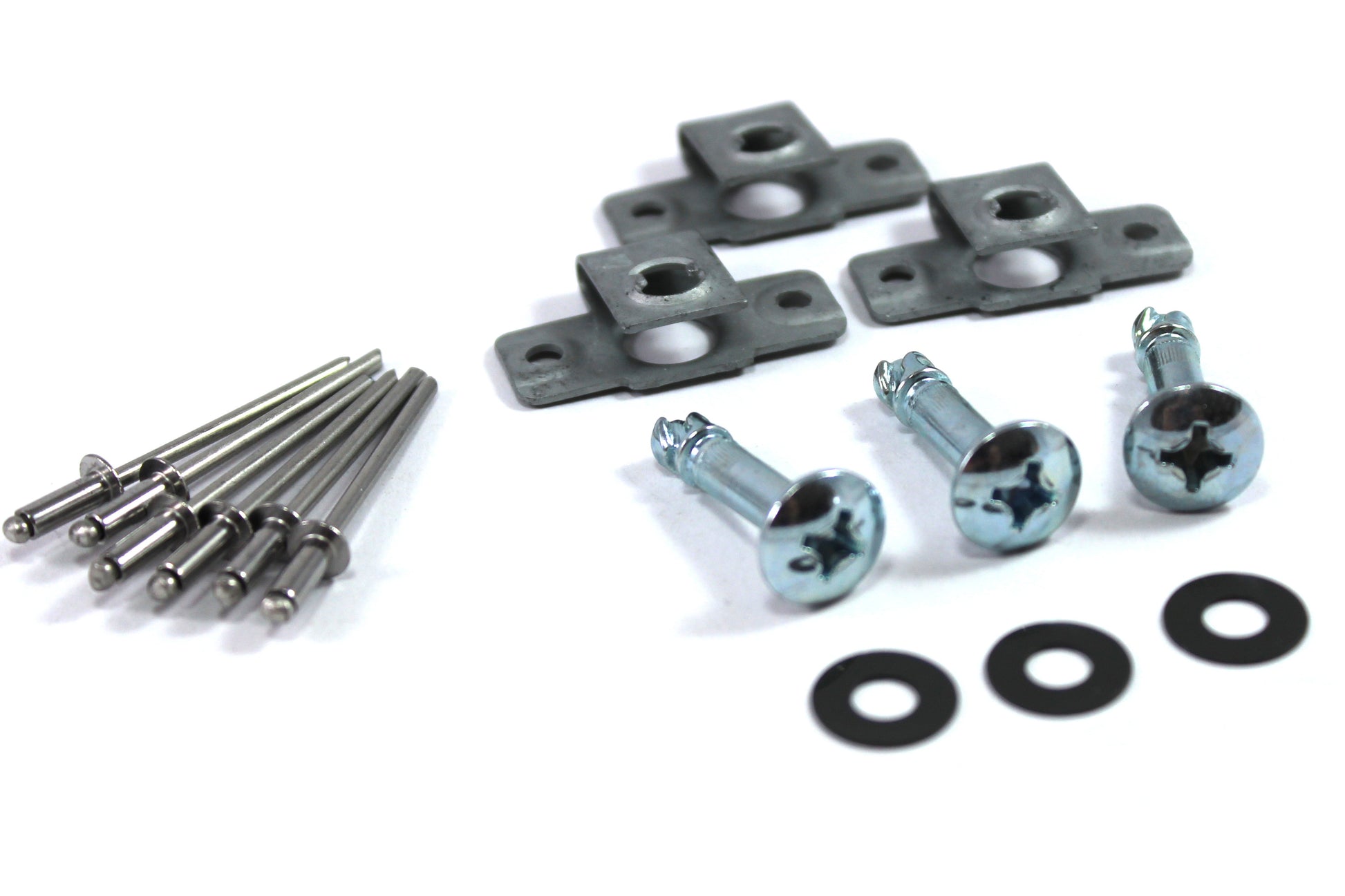

This kit contains:

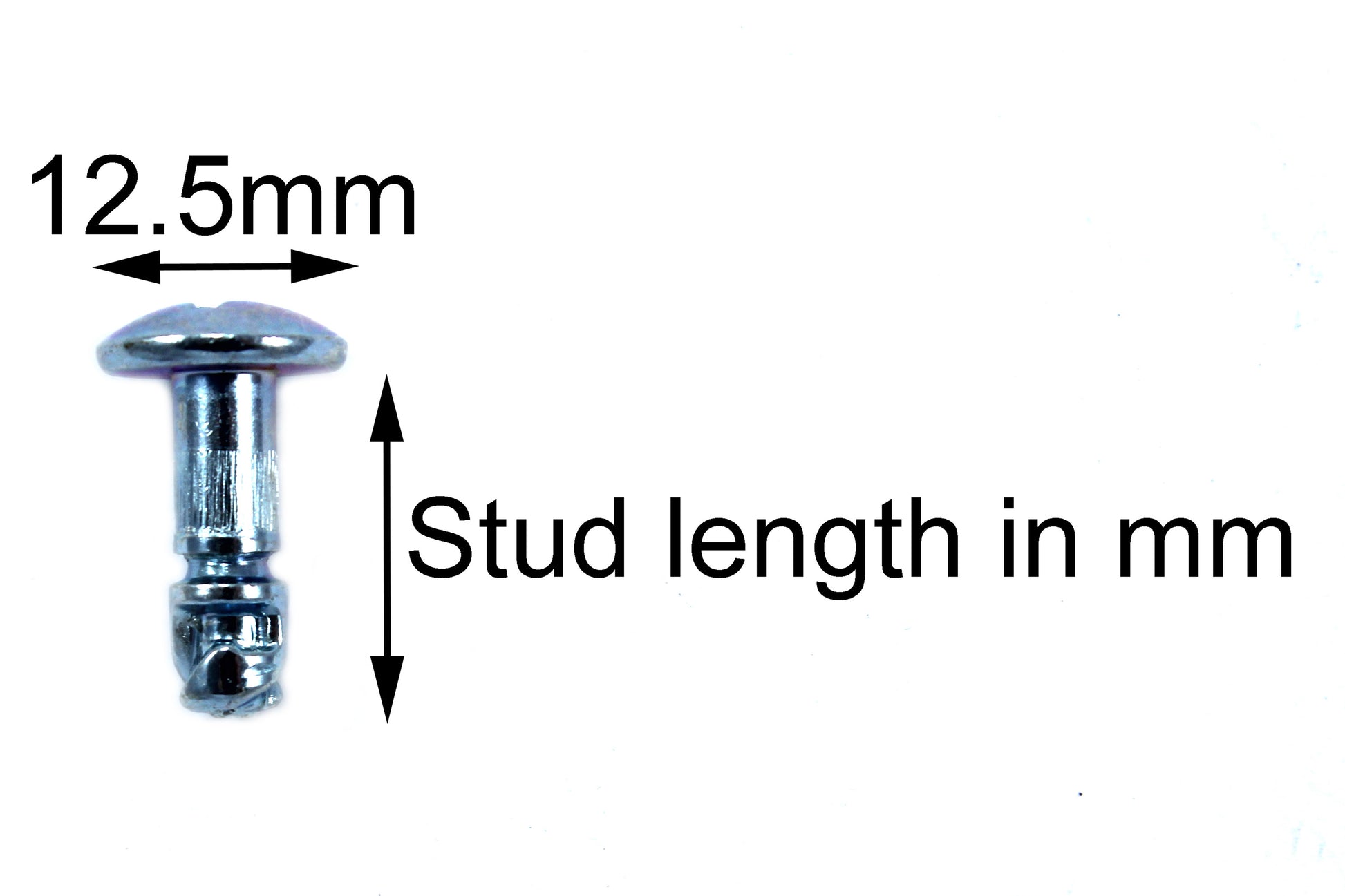

3x Zinc/Silver Dzus Studs

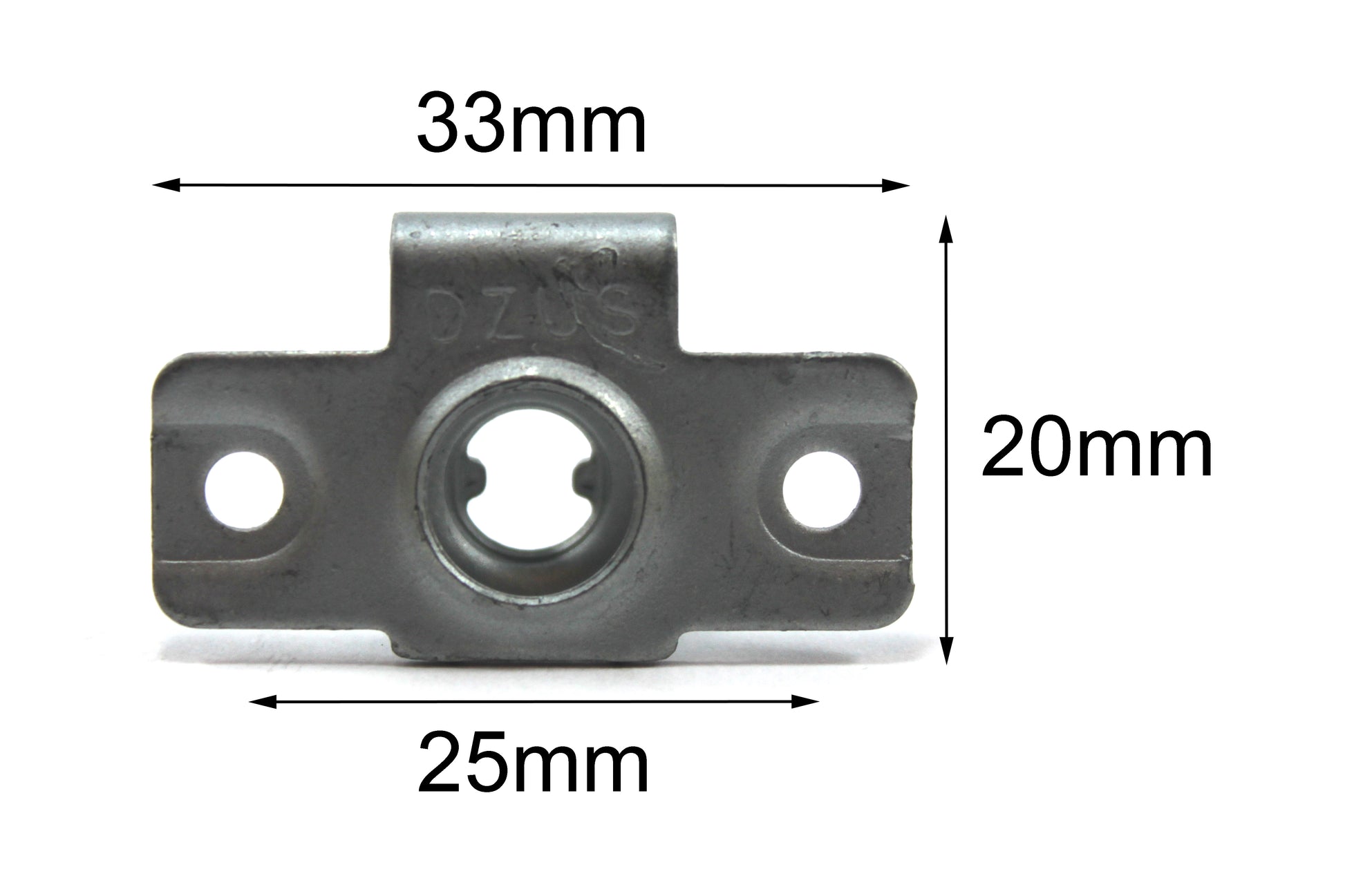

3x Rivet on Receptacles
6x Rivets
3x Retaining Washer
3x Nylon Washer

If bought from Honda, this part would cost $6.36 each plus another $5.62 each for the receptacle, not including p&p! On CMSL 3 studs with shipping and Tax works out at €37.20, and no clips!

We have good links with the suppliers of Dzus products in the UK and can source any style, colour or length you need, just send us a message for prices and lead times.

100% money back guarantee if you are not happy with the kit.
